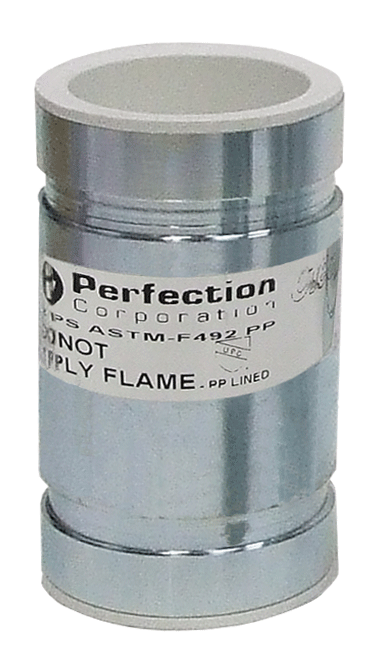

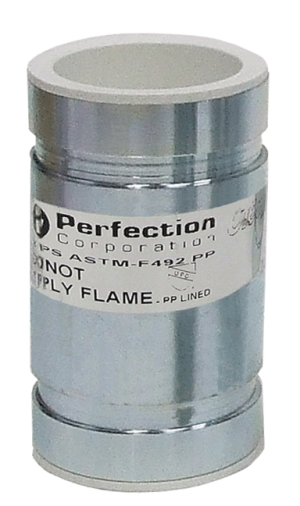

ClearFlow ® Dielectric Fitting

Clearflow® fittings protect your plumbing system through an exclusive steel-to-plastic design that establishes an effective dielectric waterway. The Clearflow® line of dielectric fittings separates dissimilar metals in the electrolyte (waterway) eliminating the local galvanic cell.

In addition, Clearflow‘s® metal-to-metal joint design maintains external electrical continuity, thereby preventing stray current corrosion. This feature becomes critical when stray current is present due to intentional or non-intentional grounding of direct current (DC) sources, e.g. phone systems and appliances.

Clearflow® fittings are designed to meet the requirements of ASTM standard F-1545 for continuous use at temperatures up to +225°F (- +5°F) and for pressures up to 300psi, and will achieve a dielectric waterway in all potable water and appropriate HVAC applications. Clearflow® is listed by IAPMO/UPC and SBCCI PST & ESI. Test results comparing Clearflow® fittings with several other connections are provided below


  • Allows for Metal to Metal electrical continuity
  • Protects your plumbing system
  • Several Install Options

Part Numbers BIM Links
19200P - Grooved by Grooved - 2"
19201P - Grooved by Grooved - 2 1/2"
19202P - Grooved by Grooved - 3"
19203P - Grooved by Grooved - 4"
